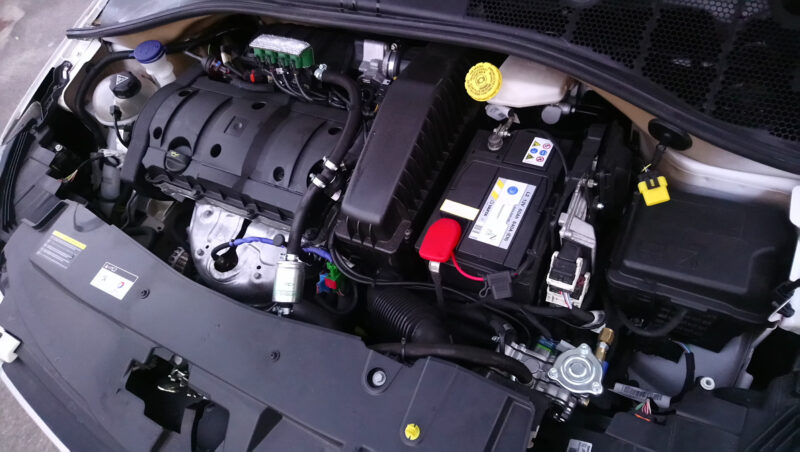

Peugeot EC5 1.6-liter engine or NFP is produced in Brazil and China since 2010 and is installed on such popular budget models of the concern as C-Elysee, 301 or 408. This motor is essentially a modernization of the TU5JP4 unit and has a Flexible-fuel version EC5F.
The ET/EC range also includes the ET3 and EC8.
Peugeot EC5 1.6 VTi engine specifications
| Type | row |
| Number of cylinders | 4 |
| Number of valves | 16 |
| Definite displacement | 1587 cm³ |
| Cylinder diameter | 78.5 mm |
| Piston stroke | 82 mm |
| Power system | spread injection |
| Power | 115 hp |
| Torque | 150 Nm |
| Compression ratio | 10.8 |
| Environmental regulations | Euro 4 / 5 |
Weight of EC5 engine according to the catalog is 124 kg
Which cars were equipped with EC5 engine?
Peugeot:
- 208 I (A9) – 2012-2019
- 301 I (M3) – 2012-present
- 308 I (T7) – 2011-2015
- Partner II (B9) – 2011-2018
Citroën:
- C3 II (A51) – 2011-2016
- C-Elysée I (M3) – 2012 to present
- Berlingo II (B9) – 2011-2018
- C4 Sedan.
Faults, breakdowns and problems of the EC5 engine
Weak catalytic converter
The most famous engine problem is a weak catalytic converter and if you pour anything into the tank, it can fall apart already by the mileage of 100-150 thousand km. After removing the catalytic converter there is usually oil consumption up to 1.5 liters per 1000 km.
Oil consumption
The oil consumption in this unit can appear even with a fully working catalytic converter, as compared to the TU5 motor, the rings are thinner here and they lie down faster.
Breakage of the timing belt
According to the regulations, the timing belt is changed every 120 000 km, but it does not always serve so long, and compliance with the dealer’s recommendation may result in its breakage and bending of valves.
Other shortcomings
Also regularly occur floating revolutions due to contamination of the throttle unit, and not very reliable ignition coils here combined into a single and not cheap unit.
The manufacturer stated the EC5 engine life at 200,000 km, but it easily goes 400,000 km.
Service regulations for Peugeot EC5 engine (1.6 VTi, 115 hp)
1. Oil service
Oil change intervals: every 20,000 km (it is better to change it every 10,000-15,000 km to increase the engine life).
Engine oil volume: 4.2 liters
Required volume for replacement: 3.25 liters
Recommended oil: 5W-30, 5W-40.
2. Timing mechanism (timing gear)
Drive type: belt drive
Official belt life: 120 000 km
Recommended replacement in practice: 60 000 km
If the belt breaks or slips: bends valves.
3. Valve adjustment
Adjustment: not necessary
Principle: hydrocompensators
4. Replacement of consumables
| Consumable | Replacement interval |
|---|---|
| Oil filter | every 20,000 km |
| Air filter | every 20,000 km |
| Fuel filter | every 40,000 km |
| Spark plugs | every 40,000 km |
| Auxiliary belt | every 120,000 km |
| Coolant | every 6 years or 120,000 km |
